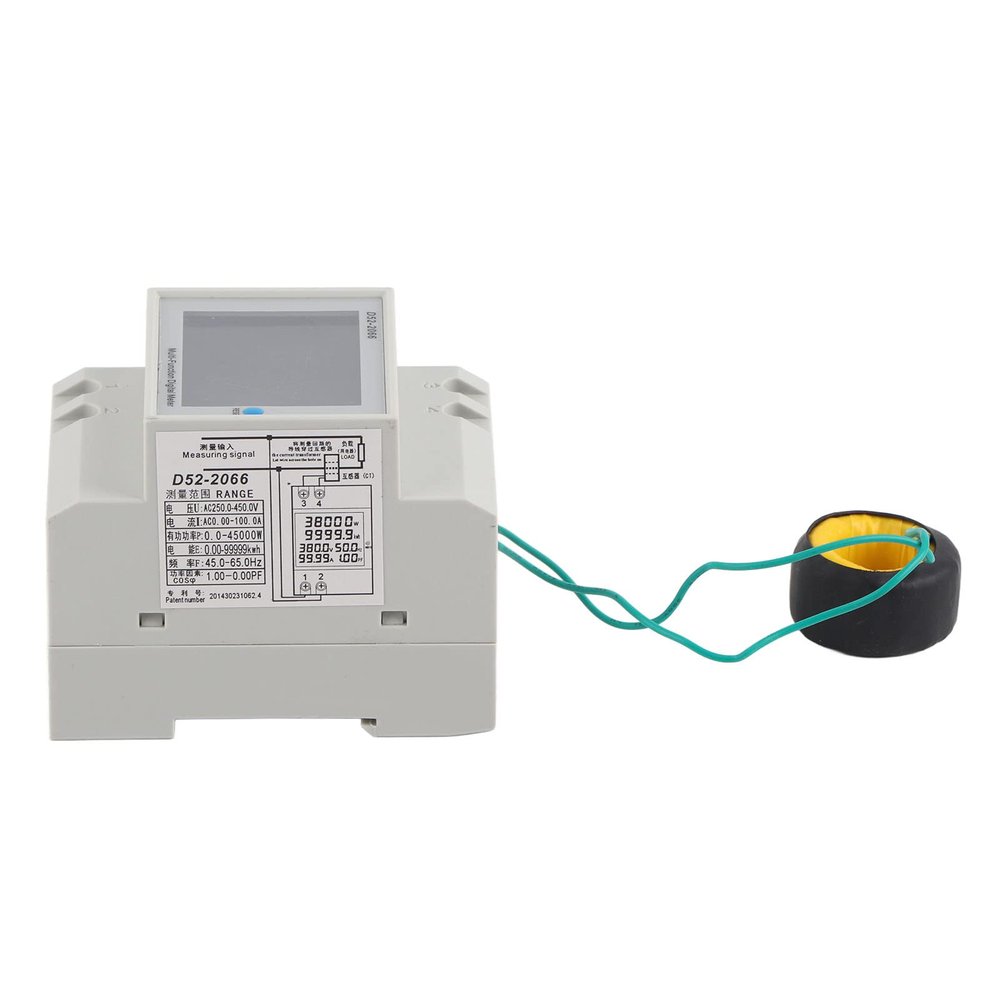

Ammeter Voltmeter Multimeter, Household AC Voltage Current Power Meter Single Phase Electrical for Automation Equipment (AC250-450V)

Description

• 6 PARAMETERS DISPLAY: The meter simultaneously displays 6 parameters such as AC voltage, AC current, active power, power factor, frequency and electrical energy
• LCD DISPLAY: Come with full viewing angle color LCD screen, possess 178 wide viewing angle, you can read clearly
• MEASUREMENT APPLICATION INDUSTRY: Widely used in chemical industry, power plants, automation equipment, DOS systems, electromechanical equipment, etc., very versatile
• SCRATCH RESISTANT ABS: Using good quality ABS material, possess impact resistance, scratch resistance, environmentally friendly
• FOR WHOLE HOUSE: Electric appliances used in the whole house, the electricity consumption is clear at a glance

1. LCD DISPLAY: Come with full viewing angle color LCD screen, possess 178 wide viewing angle, you can read clearly
2. 6 PARAMETERS DISPLAY: The meter simultaneously displays 6 parameters such as AC voltage, AC current, active power, power factor, frequency and electrical energy
3. FOR WHOLE HOUSE: Electric appliances used in the whole house, the electricity consumption is clear at a glance
4. MEASUREMENT APPLICATION INDUSTRY: Widely used in chemical industry, power plants, automation equipment, DOS systems, electromechanical equipment, etc., very versatile
5. SCRATCH RESISTANT ABS: Using good quality ABS material, possess impact resistance, scratch resistance, environmentally friendly

Spec:
Item Type: AC Voltage Current Power Meter
Model: D52-2066
Material: ABS
Uses: Used in chemical industry, power plants, automation equipment, DOS systems, electromechanical equipment and other places
Basic Parameters:
Main Specifications:
Measurement Accuracy: 1% 2 words
Measuring Range:
AC Current: AC0-100A, Current Display Resolution: 0.01A
Power Frequency: 45.0Hz-65.0Hz
Power Factor: 0.00-1.00PF
Active Power: The display resolution between 0-9999.9W is 0.1W, the rest is 1W
Electric Energy: Measuring range is 0-99999kwh, 0-999.99kwh minimum display resolution is 0.01kwh,
1000.0-9999.9kwh minimum display resolution is 0.1kwh, 10000-99999kwh minimum resolution is 1kwh
Measurement Speed: About 2 times per second
Installation Method: Rail type

packing list:
1 x AC Voltage Current Power Meter
1 x User Manual

Note:
The measuring voltage range of this instrument is 250450V, which is only suitable for pure AC 4565Hz mains power supply, measuring range 40300V is not limited.
